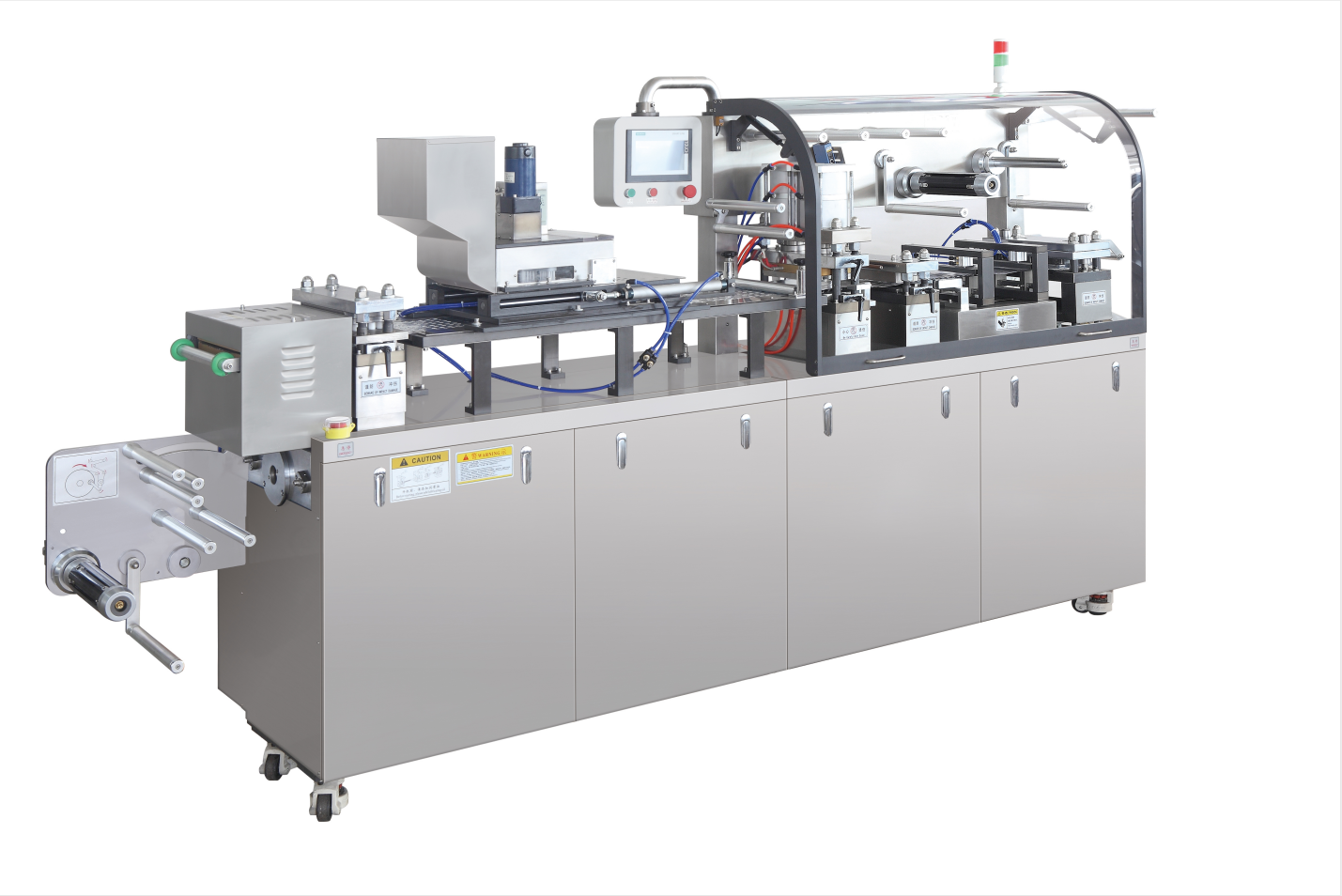

Usage :
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Alu-Alu packing in pharmacy, health care, food, cosmetics, medical equipment industry etc.
Features:
1.Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2.Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3.With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
Technical Specification:
| Cutting Frequency (Times/min) | 6-50 |
| Production Capacity(pcs/h) | 35000-230000 |
| Max. Forming Areas And Depth (mm) | 240×150×26 (standard 240×150×14) |
| Travel Range (mm) | 40-160 (Can be lengthened to 180mm as user’s requirements) |
| Standard Plate (mm) | 80×57 (Can be manufactured as user’s requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Air Supply | ≥0.3m3/min |
| Total Power | 380V/220V 50Hz 6.2kw |
| Main Motor Power (kw) | 1.5 |
| PVC Sheet (mm) | 0.15-0.5×260 |
| PTP Aluminum Foil (mm) | 0.02-0.035×260 |
| Dialysis Paper (mm) | 50-100g×260 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions (mm) | 3000×730×1600 (L×W×H) |
| Weight (kg) | 1600 |
