Main Features:
1. The 10-station rotary disc adopts integrated processing to achieve compact structure, no splicing gap, good sealing, easy to disassemble and easy to maintain, and the upper and lower modules move separately (the lower mold is horizontally stretched and the upper mold is moved vertically)
2, The fixed bracket shaft seal of the upper and lower modules adopts the oil-proof and dust-proof double-lip bone dust-proof ring. It can be repaired and maintenance-free within three years without any dry sound, small volume, small load and high precision fully enclosed rotary disc.
3, The new designed frame of capsule separation station uses transmission of guide rail, enjoying higher precision and longer service life.
4, Its closed design can prevent the defective capsule and dust from entering, ensuring a rapid and orderly capsule separation, as well as accurate capsule orienting.
5, The skeleton of ten-position turntable is machined integrally, having advantages of compact structure, no splicing gap, good sealing and easy to maintain. 6.Modularization design and positioning by pins for clamper of filling allow adjusting the filling dosage without need to stop the machine.
Technical Specification:

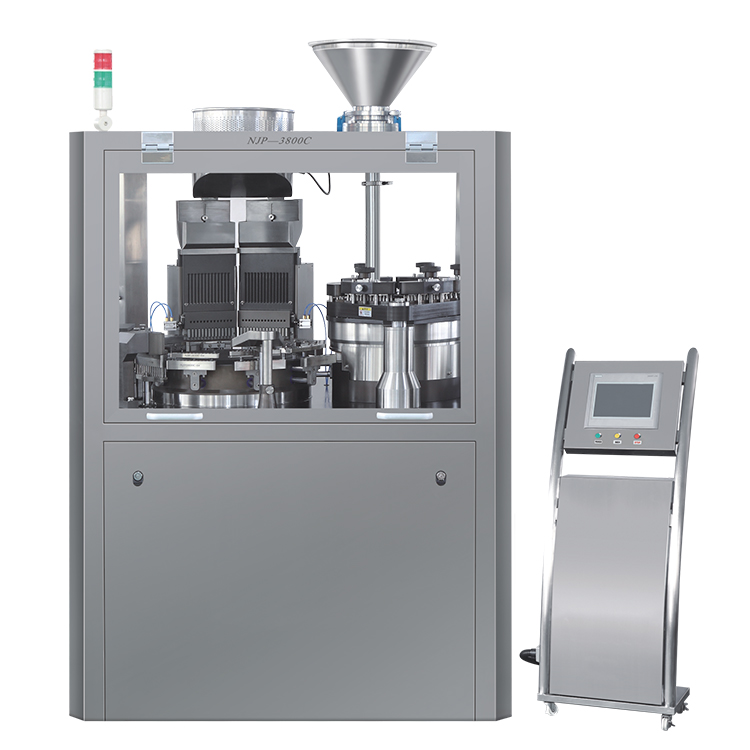

| Model | NJP-3800C |
| Filling capacity | 228000pcs per hour |
| Weight | 2200Kg |
| Dimension | 1500×1200×2200mm |
| Power supply | 380/220V 50Hz |
| Total power | 10.5KW |
| Segment bores | 27 holes |
| Vacuum | 120m3/h-0.04-0.08Mpa |
| Dust collector | 24.5Kpa 210m3/h |
| Air compression | Air consumption 7m3/h Pressure 7-8Kg |
| Water source | 1000L/H 0.3-0.4Mpa |
| Operating noise | <75DB(A) |
| Filling percentage | Empty capsule 99.9% filled capsule 99.8% |
| Capsule size | 00,0,1,2,3,4,5#, Safety capsule A-E |
| Filling accuracy | Western medicine ±3% Chinese medicine ±4% |
| Suitable for | Powder, Granule, Pellet, Tablet. |
