automatic cartoning machine 120

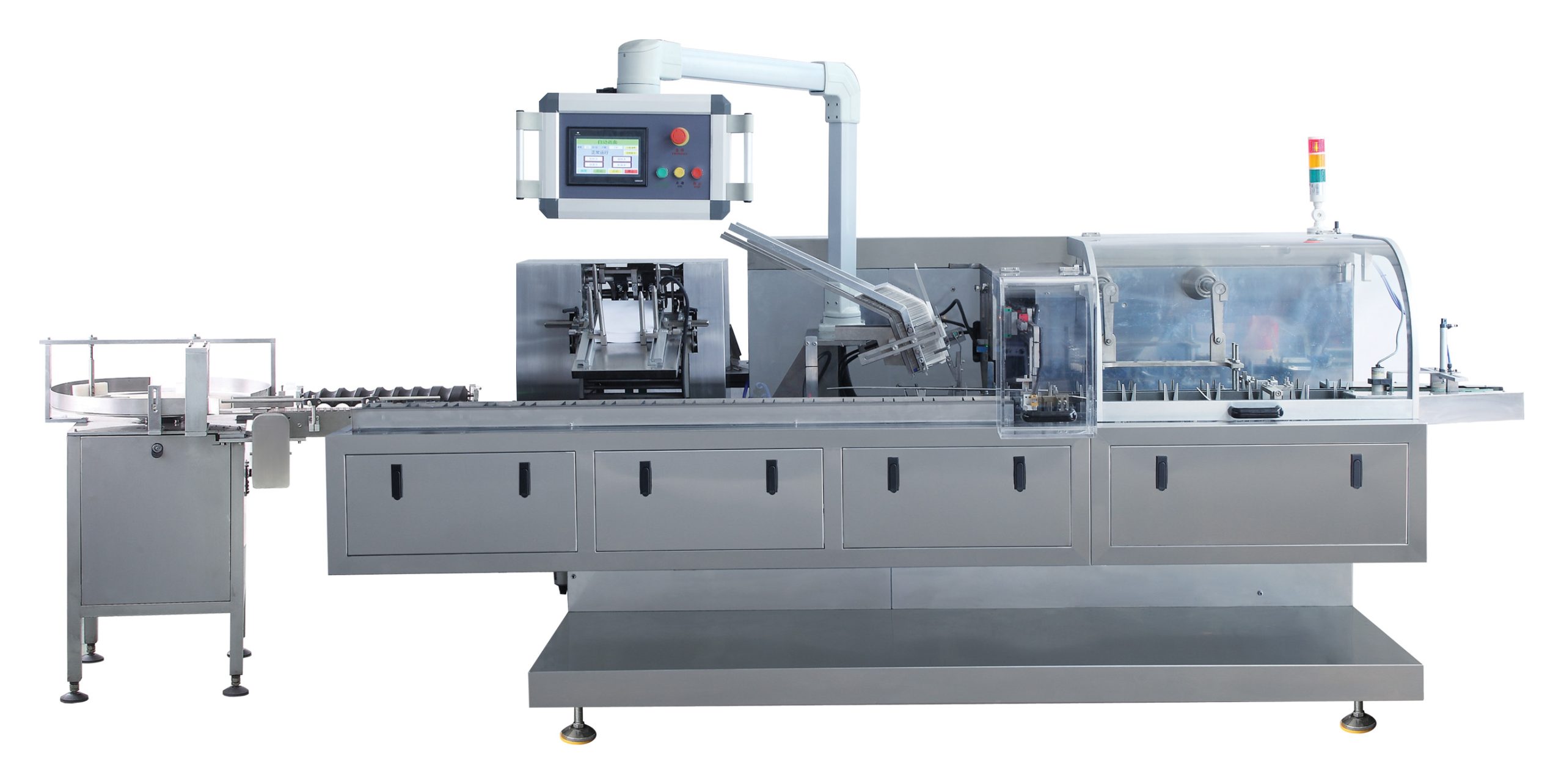

Automatic Cartoning Machine 120

Brief Introduction:

120P Automatic Cartoning Machine is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine for automatic feeding bottle(round 、square bottle)into carton (either for blister or bottle). On line bottle unscramble and feeding,leaflet fo l d ( 1 – 4 fo l d s )  and feeding, leaflet detecting, carton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device . Automatically reject lacking of leaflet or product and finished product out.



Contact Us





Category:

Features

International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

Adopt human-machine operation system.

Automatically stop when machine is overload.

Automatically reject lacking of package product and leaflet.

Automatically display trouble, Alarm and count finished products.

Stable performance,operation is easy.



Technical Specification :

ItemParameters
Encasing speed30- 120boxes/min
BoxQuality    requirement250-350g/m【Base on carton size】
ParameterDimension range

(L×W×H)

(65- 180) mm×  (35-85) mm×  (15-50 ) mm
LeafleQuality    requirement60-70g/m
PUnfolded leaflet eigspecification(80-250) ㎜ ×  (90- 170) ㎜
Foldrange【1-4】Fold
CompressedDi airWorking pressure≥0.6mpa
Air consumption120- 160L/min
Power supply220V 50HZ
Main motor power0.75kw
Machine dimension(L×W×H)4300㎜×1100㎜×1550㎜
Machine weight1600kg
